IZAS-05 autoinjector set

In the event of life-threatening poisoning by chemical warfare agents such as Sarin, Soman, Tabun, VX, only a few minutes are needed to save the lives of those affected and provide them with adequate medical care.
The set contains three auto-injectors that were developed for self-help or “comrade help” under operational conditions. Each auto-injector is simple, practical and quick to use. The importance of immediate administration of an antidote is shown by the fact that the half-life of “aging” of the enzyme-organophosphorus compound complex is very short, e.g. for the AChE (acetylcholinesterase)-Soman complex only 3-5 minutes, while With AChE-Sarin this takes approx. 18 minutes. This means that after this time only 50% of the blocked enzyme can be reactivated.

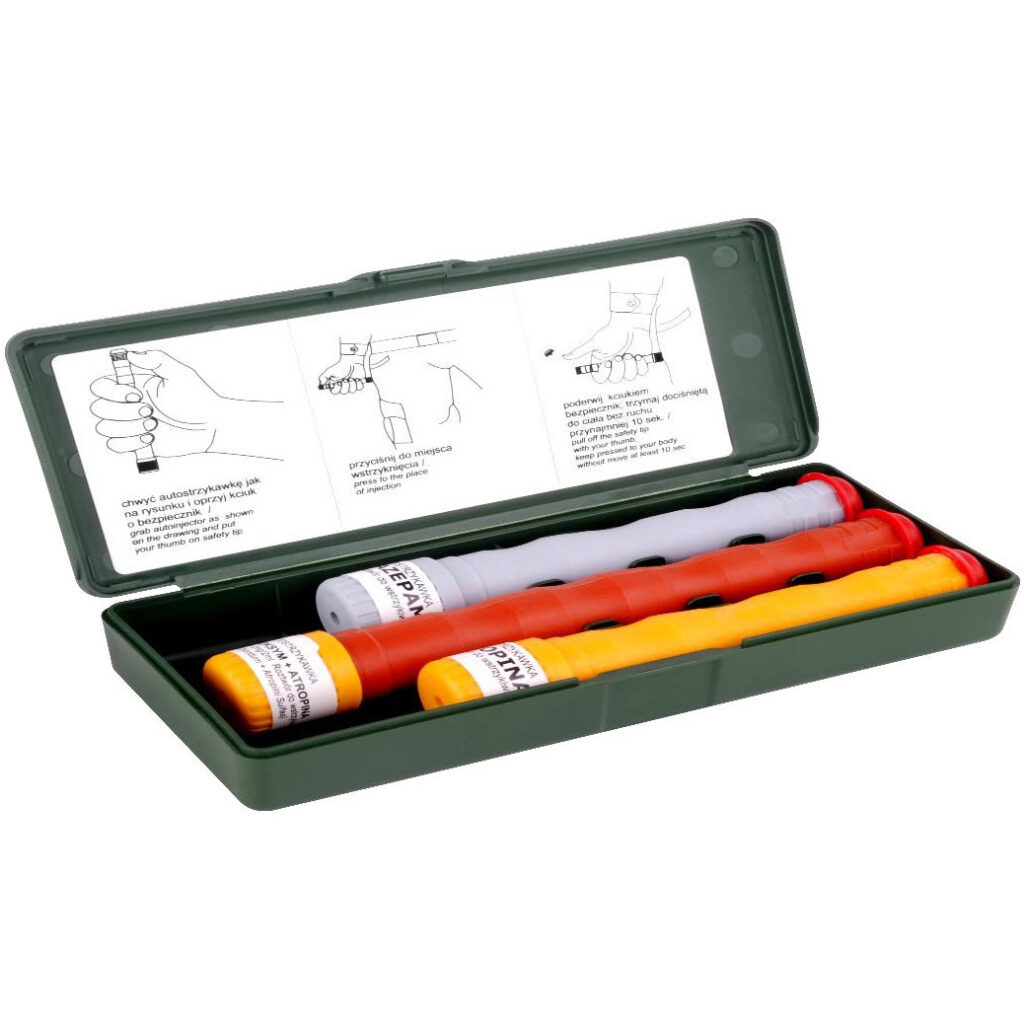

The self-help set consists of three auto-injectors against chemical warfare agents
Atropine autoinjector 2 mg/2 ml, solution for injection
Pralidoxime autoinjector + atropine, 600 mg/2 ml + 2 mg/2 ml, solution for injection
Diazepam auto-injector, 10 mg/ 2 ml, solution for injection



Technical description

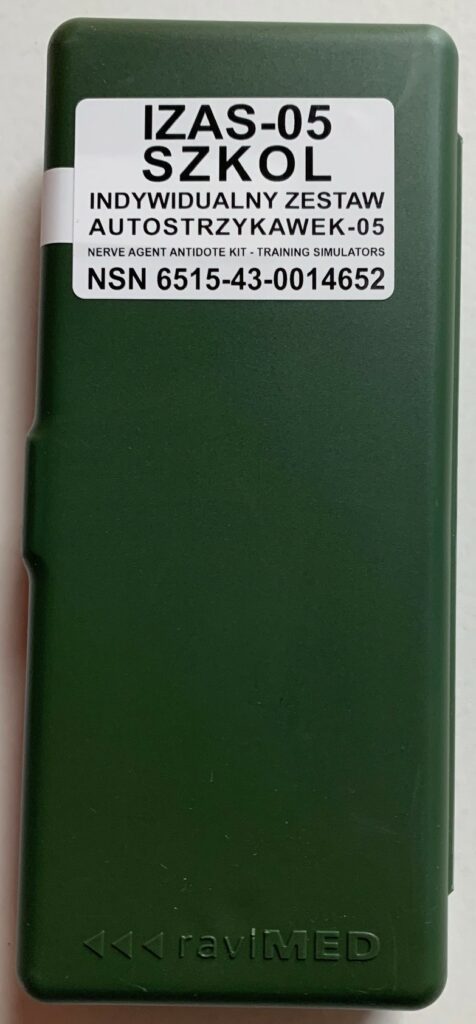

The plastic housing is 157 x 72 x 37 mm, dark green and has been tested in military operations. The advantage is:

  • Practical, easy to use
  • The auto-injectors are mechanically protected
  • The box opens quickly
  • Clearly structured in application

Each autoinjector contains a stainless steel injection needle, a plunger with cap, a spring and a single-chamber or dual-chamber ampoule. The autoinjector carries out the injection due to the action of a spring placed inside.

NATO Stock Number Atropine Autoinjector:
6505-43-000-2808

NATO stock number training autoinjector
6515-43-001-4652

Item number atropine auto-injector:
A-3-DAP-292

Article number training autoinjector set:
A-3-TDAP-290
